Why we call it 5D dental zirconia block?
1. The zirconia block is an abbreviation of multilayer;
2. Compare to white and single layer pre-shaded block, 5D multilayer zirconia block features translucent, strength and shade that is variational in 1 dimension;
3. It is a realistic and natural material which come true variation from dentin zone to incisal zone in progressive transition.
In dentin zone, the characteristic of strength and fracture toughness is high.
In incisal zone, it has nature crystal translucency, aesthetic effect is desirable and low abrasion to jaw teeth.
| Place of Origin: | China |
| Brand Name: | FirmDent |
| Model Number: | 5D Pro |
| Certification: | CE, ISO, FDA etc. |
| Minimum Order Quantity: | 5pcs/model, 50pcs/order |
| Price: | TBD |
| Packaging Details: | 1box/pcs |
| Delivery Time: | 7-10 working days. |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
Competitive Advantages
1. 5D multi-layer seamless new technology delivers high transparency (42%-49%), ultra-high strength (800-1350MPa),
and natural transitions in hardness and color, highly restoring the natural characteristics of teeth.
2. The incisal transparency reaches 49%, reproducing the penetrating luster of natural tooth enamel. It exhibits outstanding
cervical aesthetics, creating stunning and lifelike results, serving as a core material support for master-level aesthetic restorations.
3. Indicated for single crowns, multi-unit bridges (≥4 units), veneers, implant abutments, and full zirconia crowns, it meets
the complex restoration requirements of the full-scale market.
Physical Characteristics
| Technical specifications | 5D Pro |
| Density before sintering(g.cm-3) | ≥3.0 |
| Density after sintering(g.cm-3) | 6.07±0.02 |
| Coefficient of thermal expansion (25-500℃)(K-1) | 10.4±0.5 |
| Bending strength after sintering (Mpa) | 800-1350 |
| Transparency(1.0±0.02mm) | 42%-49% |
| Chemical solubility after sintering(ug.cm-2) | <100 |
| Radioactivity(Bq.g-1) | <0.1 |
| Fracture toughness | 5.0 |
| Sintering temperature(℃) | 1510 |
| Systems | 98mm |
| Thickness | 10mm/12m/14mm/16mm/18mm/20mm/22mm/25mm/30mm |

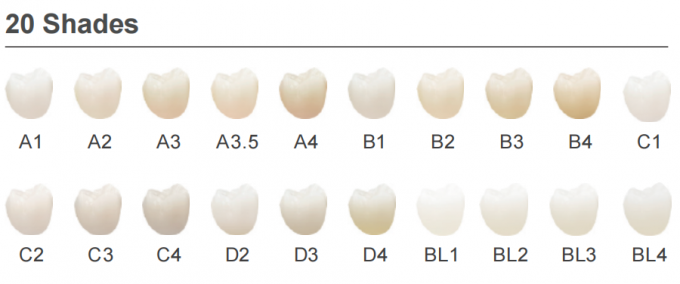

| Shades | A1 A2 A3 A3.5 A4/B1 B2 B3 B4/C1 C2 C3 C4/D2 D3 D4/ BL1 BL2 BL3 BL4 |
6 Layers
| 5D Pro | Layer Proportion | Transparency | Flexural Strength |
| 1st layer | 20% | 49% | 800MPa |
| 2nd layer | 12.5% | 47% | 900MPa |
| 3rd layer | 12.5% | 46% | 950MPa |
| 4th layer | 12.5% | 45% | 1000MPa |
| 5th layer | 12.5% | 43% | 1050MPa |
| 6th layer | 30% | 42% | 1350MPa |

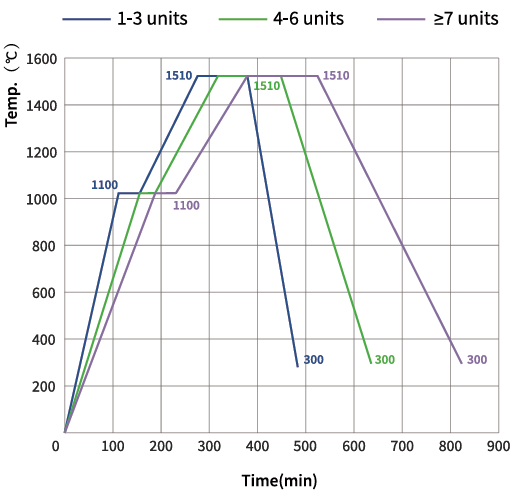

Sintering Curve

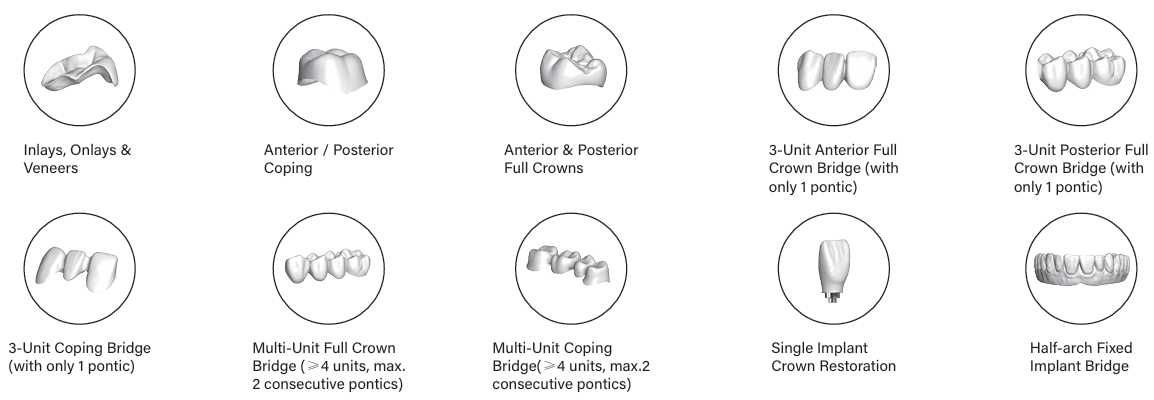

Indications
