Why we call it 5D dental zirconia block?
1. The zirconia block is an abbreviation of multilayer;
2. Compare to white and single layer pre-shaded block, 5D multilayer zirconia block features translucent, strength and shade that is variational in 1 dimension;
3. It is a realistic and natural material which come true variation from dentin zone to incisal zone in progressive transition.
In dentin zone, the characteristic of strength and fracture toughness is high.
In incisal zone, it has nature crystal translucency, aesthetic effect is desirable and low abrasion to jaw teeth.
| Place of Origin: | China |
| Brand Name: | FirmDent |
| Model Number: | 5D ENH |
| Certification: | CE, ISO, FDA etc. |
| Minimum Order Quantity: | 5pcs/model, 50pcs/order |
| Price: | TBD |
| Packaging Details: | 1box/pcs |
| Delivery Time: | 7-10 working days. |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
Physical Characteristics
| Technical specifications | 5D ENH |
| Density before sintering(g.cm-3) | ≥3.0 |
| Density after sintering(g.cm-3) | 6.07±0.02 |
| Coefficient of thermal expansion (25-500℃)(K-1) | 10.4±0.5 |
| Bending strength after sintering (Mpa) | 800-1200 |
| Transparency(1.0±0.02mm) | 44%-55% |
| Chemical solubility after sintering(ug.cm-2) | <100 |
| Radioactivity(Bq.g-1) | <0.1 |
| Fracture toughness | 5.0 |
| Sintering temperature(℃) | 1510 |
| Systems | 98mm/95mm/92mm |
| Thickness | 10mm/12m/14mm/16mm/18mm/20mm/22mm/25mm/30mm |
| Shades | A1 A2 A3 A3.5/B1 B2/BL1 BL2 BL3 |

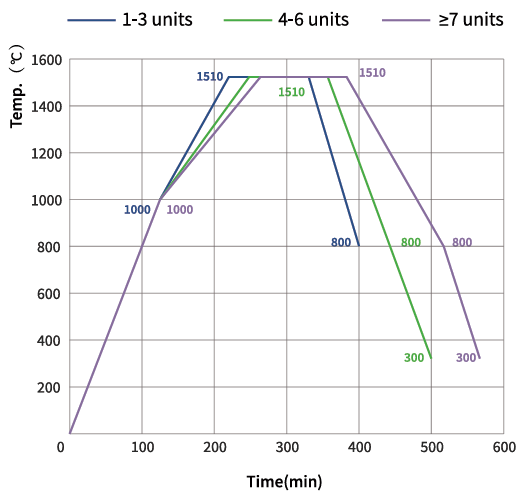

Sintering Curve
Competitive Advantage
1. Adopting TOSOH main materials + customized full-compatibility auxiliary material innovation process, combined with
gradient sintering technology, it lays a solid foundation for superior quality.
2. Ceramic research-grade 1510℃ gradient sintering results in a high density of 6.07g/m³ after sintering. The dense and uniform
crystal structure significantly enhances durability and corrosion resistance.
3. With a flexural strength of 800-1200MPa and a high translucency of
44%-55%, it meets a wide range of application requirements. It achieves natural tooth color gradients and realizes aesthetic
biomimicry.

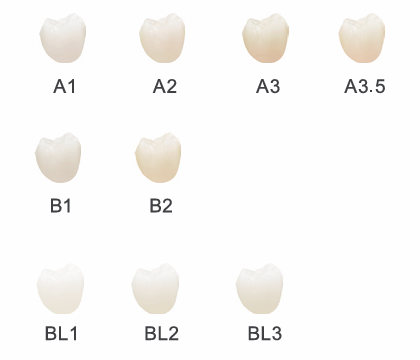

Shades
