Why we call it 5D dental zirconia block?
1. The zirconia block is an abbreviation of multilayer;
2. Compare to white and single layer pre-shaded block, 5D multilayer zirconia block features translucent, strength and shade that is variational in 1 dimension;
3. It is a realistic and natural material which come true variation from dentin zone to incisal zone in progressive transition.
In dentin zone, the characteristic of strength and fracture toughness is high.
In incisal zone, it has nature crystal translucency, aesthetic effect is desirable and low abrasion to jaw teeth.
| Place of Origin: | China |
| Brand Name: | FirmDent |
| Model Number: | 5D Ultra |
| Certification: | CE, ISO, FDA etc. |
| Minimum Order Quantity: | 5pcs/model, 50pcs/order |
| Price: | TBD |
| Packaging Details: | 1box/pcs |
| Delivery Time: | 7-10 working days. |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
Physical Characteristics
| Technical specifications | 5D Ultra |
| Density before sintering(g.cm-3) | 3.15±0.05 |
| Density after sintering(g.cm-3) | 6.07±0.02 |
| Coefficient of thermal expansion (25-500℃)(K-1) | 10.4±0.5 |
| Bending strength after sintering (Mpa) | 800-1200 |
| Transparency(1.0±0.02mm) | 43%-53% |
| Chemical solubility after sintering(ug.cm-2) | <100 |
| Radioactivity(Bq.g-1) | <0.1 |
| Fracture toughness | 5.0 |
| Sintering temperature(℃) | 1510-1560 |
| Systems | 98mm/95mm/92mm |
| Thickness | 10mm/12m/14mm/16mm/18mm/20mm/22mm/25mm/30mm |
| Shades | A1 A2 A3 A3.5 A4/B1 B2 B3 B4/C1 C2 C3 C4/D2 D3 D4/ BL1 BL2 BL3 BL4 |

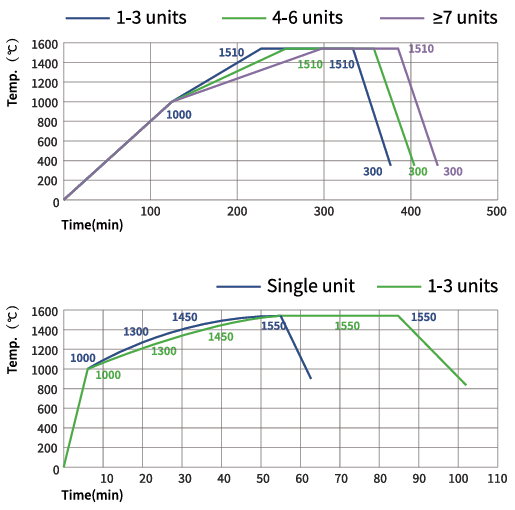

Sintering Curve
Competitive Advantage
1. Raw Material Process: Uniform granulation + powder mixing and sieving, ensuring stable performance from the source.
2. Forming & Sintering: Customized formula + multi-stage temperature control, resulting in a dense and uniform crystal structure.

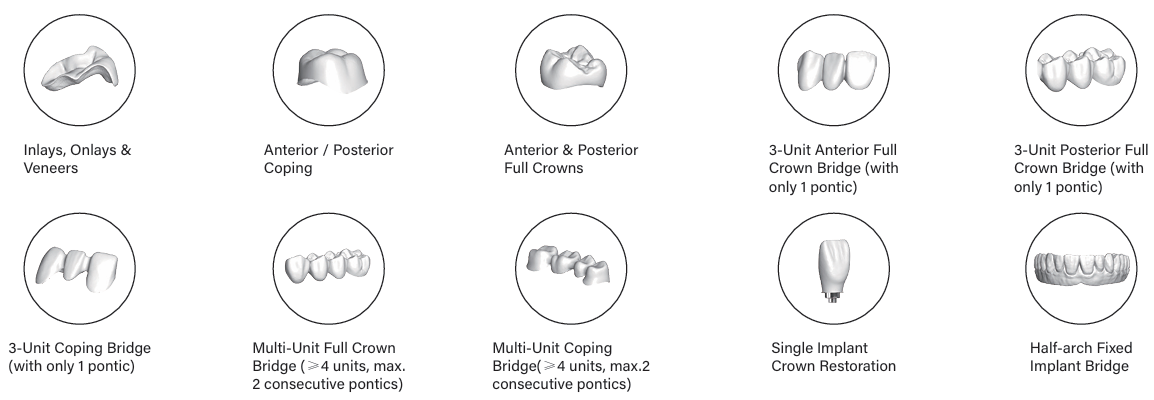

3. Core Performance: Excellent balance of strength and translucency, compatible with a wide range of clinical cases.
4. Machining Characteristics: Machining limit edge: 0.01mm, single crown thickness: 0.5mm.
5. Sintering Performance: Wide sintering temperature range, with high density, no deformation, and no chipping.
6. High Cost-Effectiveness: Quality benchmarked against international brands, offering exceptional value beyond expectations.
Shades
