Firm Dental Limited has been focused on providing high quality multilayer Zirconia Blocks for dental labs, dental clinic and patients, which is committed to make the treatment of dentists or operators to simpler and more efficient, to enable users to show a satisfied smile. We have VITA 16 colors in production line, and focus on the production and research and development of multi-layer zirconia blocks, ST-ML, UT-ML, SHT-ML are in hot selling.
| Place of Origin: | China |
| Brand Name: | FirmDent |
| Model Number: | 3D Pro |
| Certification: | CE, ISO, FDA etc. |
| Minimum Order Quantity: | 5pcs/model, 50pcs/order |
| Price: | TBD |
| Packaging Details: | 1box/pcs |
| Delivery Time: | 7-10 working days. |
| Payment Terms: | T/T |
| Supply Ability: | 1000pcs/day |
Physical Characteristics
| Technical specifications | 3D Pro |
| Density before sintering(g.cm-3) | 3.15±0.05 |
| Density after sintering(g.cm-3) | 6.07±0.02 |
| Coefficient of thermal expansion (25-500℃)(K-1) | 10.4±0.02 |
| Bending strength after sintering (Mpa) | 800-1200 |
| Transparency(1.0±0.02mm) | 42%-49% |
| Chemical solubility after sintering(ug.cm-2) | <100 |
| Radioactivity(Bq.g-1) | <0.1 |
| Fracture toughness | ≥3.5 |
| Sintering temperature(℃) | 1500 |
| Systems | 98mm/95mm/92mm |
| Thickness | 10mm/12m/14mm/16mm/18mm/20mm/22mm/25mm/30mm |

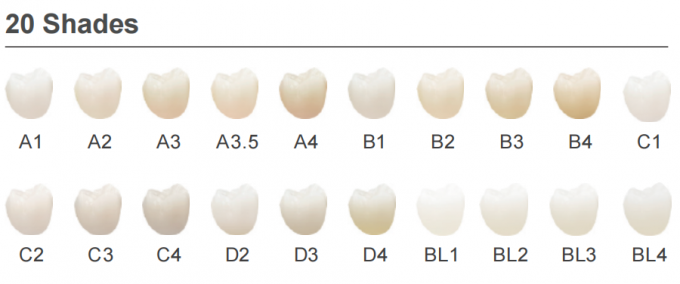

| Shades | A1 A2 A3 A3.5 A4/B1 B2 B3 B4/C1 C2 C3 C4/D2 D3 D4/ BL1 BL2 BL3 BL4 |
| 3D Pro | Layer Proportion | Transparency | Flexural Strength |
| 1st layer | 20% | 49% | 800MPa |
| 2nd layer | 12.5% | 47% | 900MPa |
| 3rd layer | 12.5% | 46% | 950MPa |
| 4th layer | 12.5% | 45% | 1000MPa |
| 5th layer | 12.5% | 43% | 1050MPa |
| 6th layer | 30% | 42% | 1100MPa |

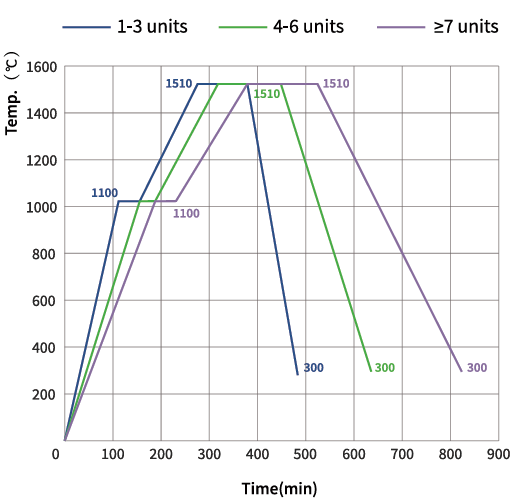

Sintering Curve
Competitive Advantage
1. 3D multi-layer gradient structural design meticulously simulates the natural color and appearance of natural teeth, delivering
direct color manifestation after sintering with no need for additional staining.
2. With a flexural strength of 800-1200MPa and a high translucency of 43%-51%, it meets the dual demands of aesthetics and durability
for high-end restorations.
3. It features excellent color rendering stability and a natural transition effect, simplifying the processing workflow and ensuring high

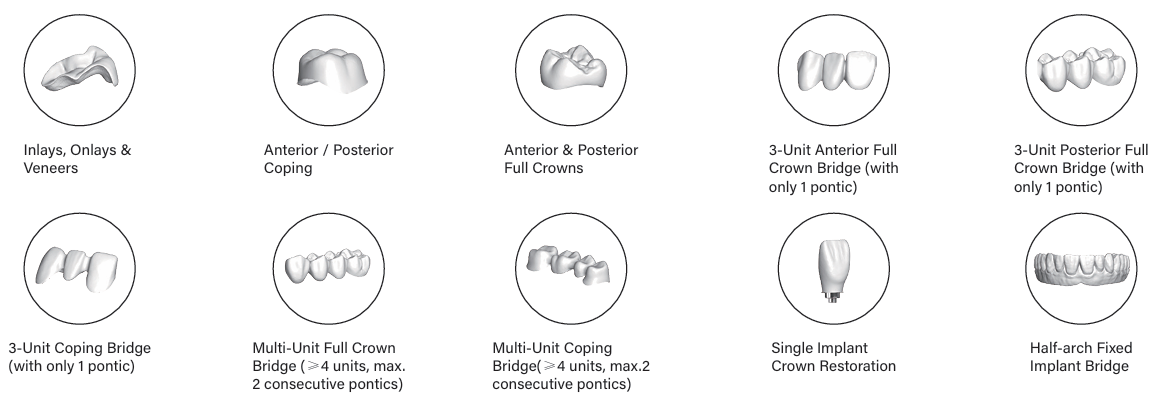

patient satisfaction with aesthetic restorations. It is compatible with various restoration scenarios.
